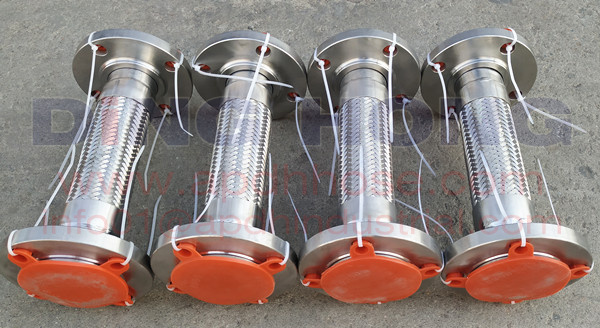

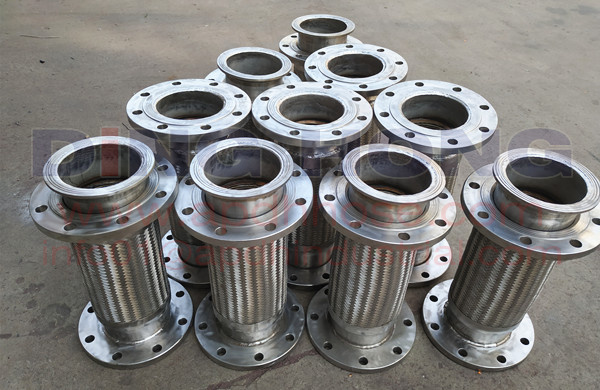

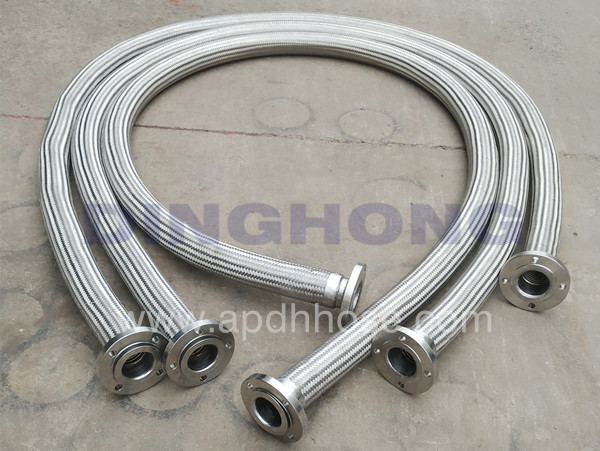

ANSI150 flange stainless braided hose assemblies

Flange stainless braided hose is a corrugated stainless steel tube (helical corrugation on sizes to 2inch and annular corrugation on larger sizes) with external stainless steel braiding and flange ends. It is commonly used in high temperature or highly corrosive applications where a rubber hose is not suitable.

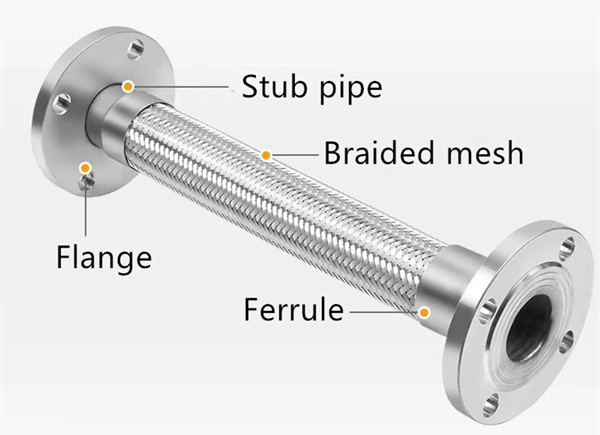

Construction:


Flange stainless braided hose assemblies specifications:
1. Hose diameter: 1/2inch (DN15) --36inch(DN900)
2. Hose type: annular or helical corrugated
3. Flange type: floating or fixed flange
4. Flange standard: ANSI150#
5. Maximum working pressure: 100Bar
6. Working temperature range: -200℃ to +500℃
7. Flange material: stainless steel 304, 316L, 321 or Carbon steel
8. Braided hose assemblies length can be produced according to user requirements



Flange stainless braided hose assemblies applications:
Fluid: Cold or Hot water, Steam, Oil, Gas
Industry:
Power plant
Steel mill
Rubber tyre industry
Palm oil processing plant
Fertilizer industry
Pharmaceutical industry
Chemical industry
Boiler industry
Paper industry
Lubrication industry
LNG, LPG, CNG stations
Cryogenic oxygen, nitrogen, argon pipeline
