Product name : Flange Hose Flexible Braided Pump Connectors
Item :
Price :

Details :

ss pump connectors
Flange Hose Flexible Braided Pump Connectors also known as stainless steel flexible metal hose, flanged flexible pump connectors, flange pipe pump connectors, etc. it’s a high quality flexible connecting pipe in modern industry, also an important connection element in engineering technology, and it plays as compensating components, sealing components, connecting components and shock absorption components in all kinds of gas transmission, liquid transmission systems and length, temperature, location and angle compensation systems.

Flange flexible pump connectors are designed to absorb excessive pump nozzle loads created from any number of pump installation or operation problems. Nozzle loads from pipe misalignment, thermal expansion, and other factors can cause seal leakage, coupling problems, bearing problems, and more. The right pump connector can eliminate the problems caused by these excessive nozzle loads.
The right flexible pump connectors will also isolate vibration, which can be destructive and magnified through the piping system.
Flange x flange Pump Connectors are flexible metal assemblies, primarily designed to isolate vibration from pumps on both the suction and discharge sides of the pump. They help to prevent damage caused by vibration, expansion and contraction. They accept thermal expansion and reduce piping stress due to minor misalignment. Constructed of stainless steel annular corrugated metal hose and surrounded with a woven braid of high tensile stainless steel, these assemblies are flexible and are suitable to withstand high pressure and temperatures.

Flange flexible braided pump connectors construction:

Corrugated inner hose, braided mesh layer and flange ends.
Flanged pump connector

Flexible braided pump connectors specifications:
1. Hose material: SS304, SS316 or SS321
Hose size: 1inch - 36inch

3. Hose thickness: 0.28-1.0mm
4. Hose type: annular corrugated
5. Connection type: Floating or fixed type Flange
6. Flange standard: ANSI, JIS, DIN, GB, GOST, BS, Table E etc
7. Maximum working pressure range: 0.6-7.5Mpa(depend on hose size)
8. Working temperature range: -200
~ +850℃ (depend on hose material)
9. Flange material: stainless steel or carbon steel
10. Total assembly length: 150mm, 200mm, 250mm, 300mm or as per your request


Flange flexible braided pump connectors advantages:
Reduce the installation stress of pipeline
Compensation pipe position
Absorb the vibration of the pipeline system

Stainless steel corrugated inner tube and outer shield of wire braid Stainless Steel – 300 Series
Steel fixed flanges ANSI150lb/300lb, JIS, DIN, Table E, BS, etc
Maximum working temperature
A pressure safety factor of 4:1

Flanged flex pump connectors
Braided flexible pump connectors

Flange hose flexible braided pump connectors application:

Widely used in water treatment industry, steel plant, power plant, chemical equipment industry, boiler industry's pump pipeline connection system.

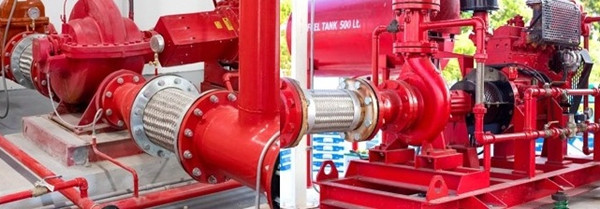

Industrial flexible pump connector

We can provide flange flexible braided pump connectors samples for testing.
Special customized services can also be provided.
