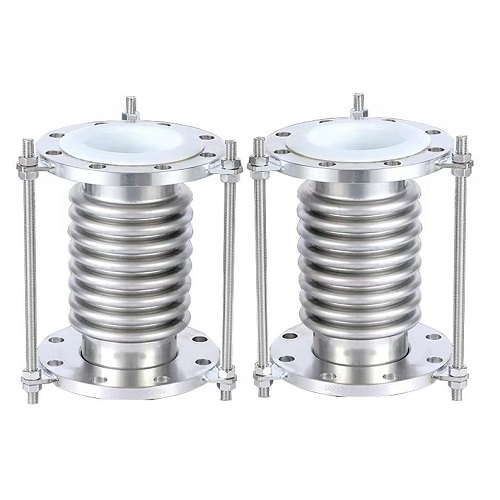

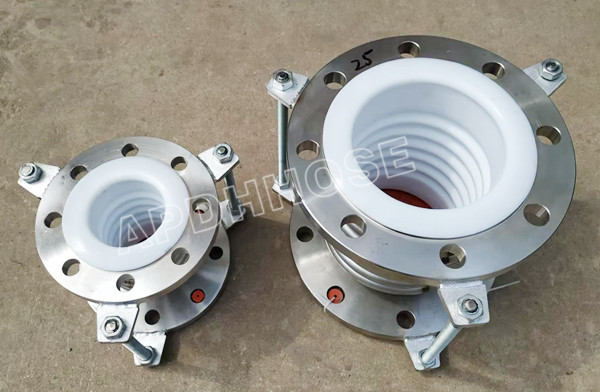

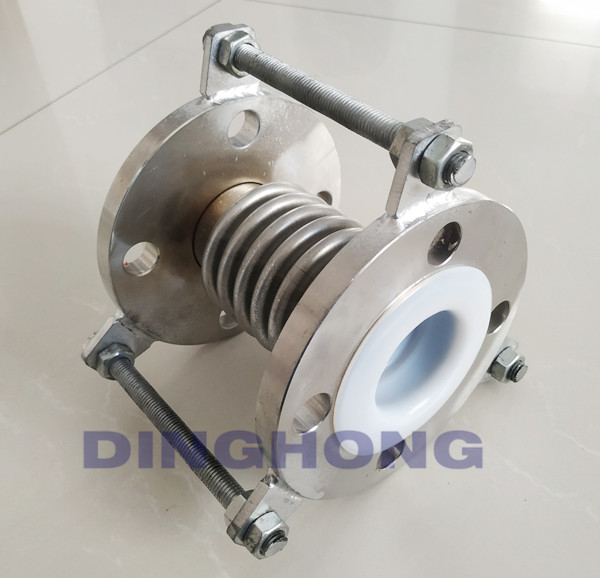

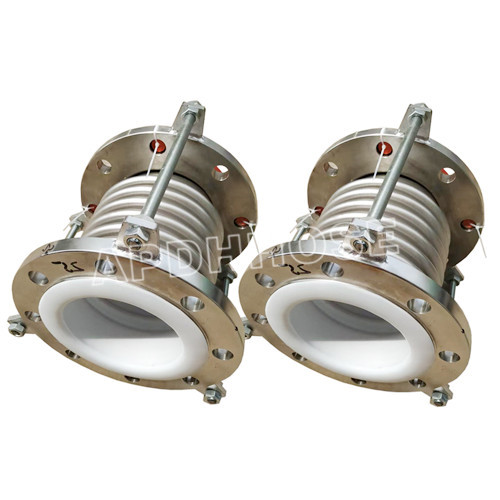

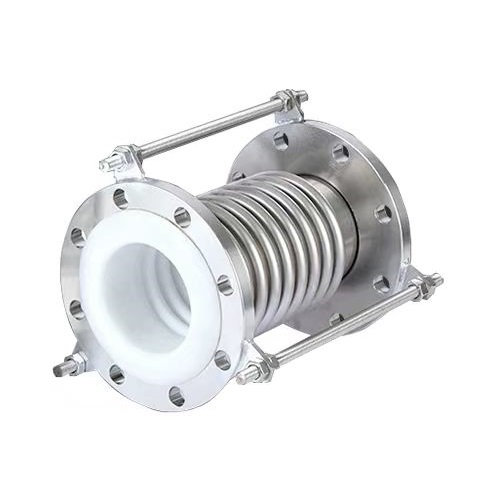

PTFE lined metal expansion joint

PTFE lined metal expansion joint construction:
Bellows hose, flange and ptfe liner

PTFE lined metal expansion joint specifications:
1 Hose material: SS304, SS316, SS321 etc
2 Hose size: 1"-80"
3 Bellows layer: 1-3 layer bellows
4 Hose type: annular corrugated
5 Connect type: flange
6 Flange standard: ANSI, JIS, DIN, GOST, BS, GB, Table E etc
7 Operating pressure range: 0.6-2.5Mpa (depend on hose size)
8 Working temperature: -70~+260℃
9 Flange material: carbon steel or stainless steel 304, 316 etc
10 Total assembly length can be produced according to your request




For more information, please contact: +8618832752527(WhatsApp WeChat)  or info@apdhhose.com
