Product name : Quick Coupling Stainless Steel Flexible Hose
Item :
Price :

Details :

Quick coupling stainless steel flexible hose also known as stainless steel braided hose, cam lock quick coupling flexible hose, it’s a high quality flexible connecting pipe in modern industry, also an important connection element in engineering technology, and it plays as compensating components, sealing components, connecting components and shock absorption components in all kinds of gas transmission, liquid transmission systems and length, temperature,location and angle compensation systems.

Quick coupling stainless steel flexible hose is mainly composed of flexible body (corrugated pipe), braided mesh body and cam lock joints in different forms. the inner pipe of metal hose is spiral or annular shape thin-wall stainless steel bellows, outer braided mesh cover is weaved by stainless steel wire or steel belt by certain specification. the corrugated pipe of metal hose is made by seam stainless steel thin walled tube, using high precision plasticity deformation technology, the elastic characteristic of bellows outline decides hose’s flexibility and fatigue resistance. metal hose can easily absorb all kinds of movement transformation and cyclic loading, especially satisfying compensation for larger displacement, plays an important role on thermal expansion absorption, vibration adsorption of pipeline systems.

Quick coupling stainless steel flexible hose construction:
Corrugated inner hose, braided mesh layer and cam lock quick coupling ends.

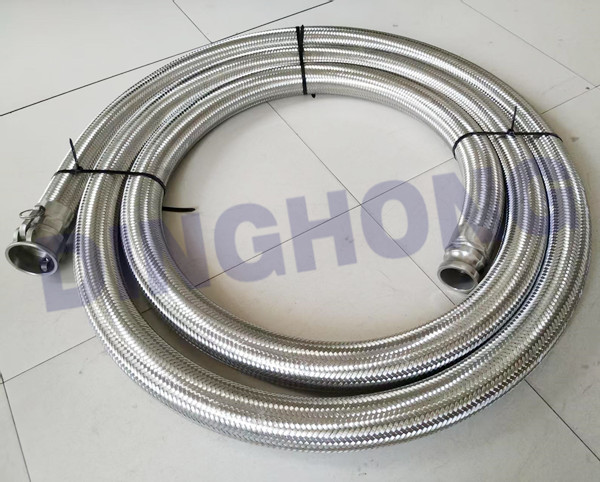

Quick coupling flexible hose

Stainless steel flexible hose technical data:
1. Hose material: SS304 or SS316, SS321
2. Hose size: 1/2Inch -- 8Inch
3. Hose type: Annular or spiral corrugated
4. Connection type: A, B, D, F camlock quick coupling
A x A, D x D, A x D
B + A x D
B + A x A

B + A x D + F
B + A x D + A
B + A x A + B
B + A x A + D
A x D+ F
D x D+ F
A + D x D + F
D + A x D + F
A + D x D + A
A + D x A + D
D + A x A + D
5. Maximum working pressure: 10Mpa(depend on hose size)
6. Working temperature: -200℃~+500℃
7. Cam lock coupling material: stainless steel 201, 304 or 316
9. Overall length: 0.3-20m or as per your request

























Stainless steel flexible hose advantage:
Flexible
High temperature resistant
High physical strength
Wear resistant
Vibration control
Noise reduction
Relief from system stressors
Prevention of system shock
Compensation for misalignment and movement
Resistant to penetration and damage

Stainless steel flexible hose function:
1. Reduce the installation stress of pipeline
2. Compensation pipe position
3. Absorb the vibration of the pipeline system

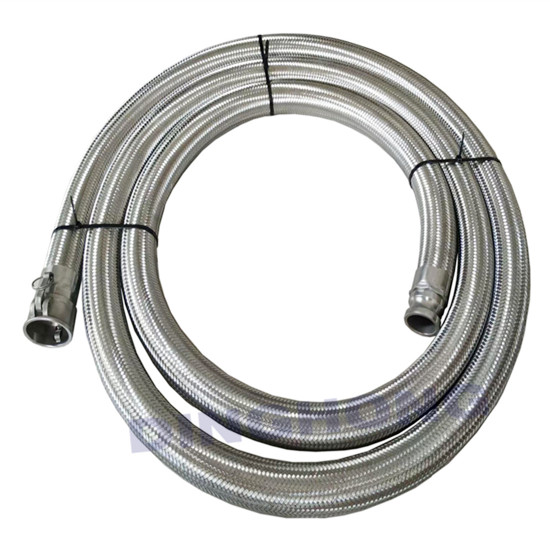

Quick Coupling Stainless Steel Flexible Hose

Application of cam lock quick coupling stainless steel flexible hose:
Its application range covers aviation, aerospace, petroleum, chemical engineering, metallurgy, electric power, papermaking, wood,spinning, construction, medicine, food, tobacco, transportation industries, as well as in wiring protection of railway, engine, air-condition, all kinds of machinery, automatic control equipment, power transmission and distribution system, communication system, ship, building, cement tanker etc.

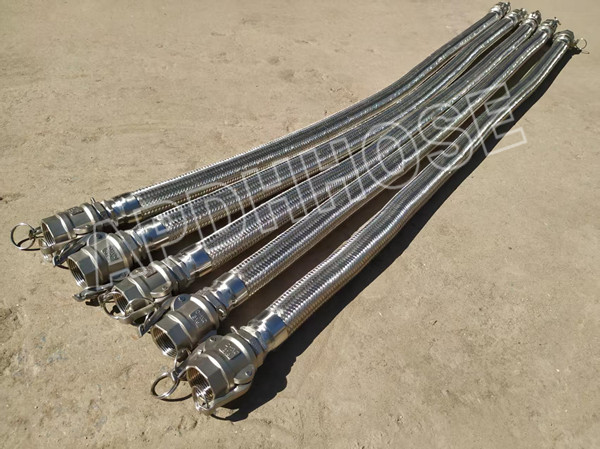

Camlock stainless steel flex hose

We can provide free Quick Coupling Stainless Steel Flexible Hose sample for testing.
The minimum order quantity of Quick Coupling Stainless Steel Flexible Hose is 1pcs

Welcome to contact us for more information about quick coupling stainless steel flexible hose products:
E-mail: info01@apdhindustrial.com
WhatsApp WeChat: +8618832752527
